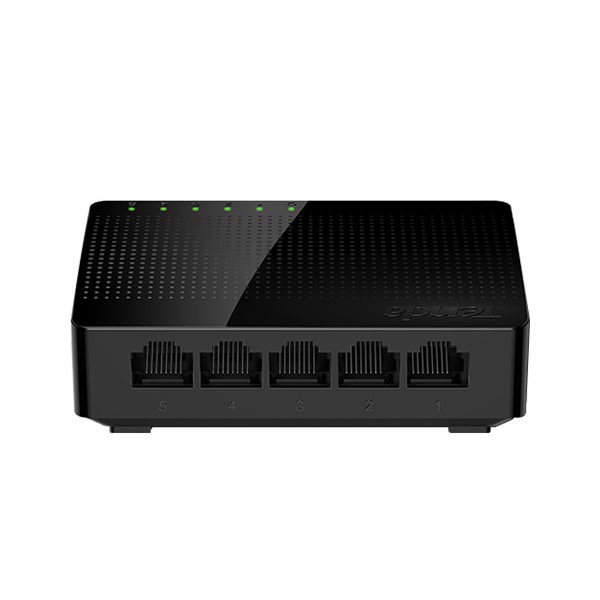

SG105 is a 5-Port Gigabit Desktop SOHO switch. It provides 5 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, and eliminate the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged. With the stable connectivity and easy-to-use features, it is perfectly fit for the network of school dormitories, small offices, home offices, and surveillance.
R429.00
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| LED Indicator | 1* Power, 5* Link/Act |
| Interfaces | 5*10/100/1000 Base-T Ethernet ports (Auto MDI/MDIX) |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Dimension | 93.0mm×66.0mm×23.0mm |
| Material | Plastic |
| Level of protection | ESD: Air discharge: ±8kV Contact discharge: ±6kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 10Gbps |
| Packet forwarding rate | 7.44Mpps |
| Buffer | 1Mb |
| MAC address table | 2K |
| Power | Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A ( External Power Adapter ) |
| Power consumption | Max:<1.7W |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Environment | Operating temperature: 0°C – 45℃ Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing |
| Certification | CE, FCC, RoHS |
| Protocols | CDMA/CD |
| MAC address learning | Auto-Learning and Auto-Aging |
| Funtions | plug-and-play |
