Reyee Dual Band WiFi 6 1800Mbps Gigabit Outdoor AP

Reyee Dual Band WiFi 6 1800Mbps Gigabit Outdoor AP

Reyee’s RG-RAP6262GX is an 802.11ax (WiFi 6) dual-band IP68 outdoor access point. The unit features 2×2 MU-MIMO, two Gigabit Ethernet Ports, seamless layer 3 roaming and an aggregate speed of up to 1800Mbps. It supports Ruijie’s smart networking feature, which with Ruijie’s free cloud service allows users to quickly and easily auto-provision, deploy and manage devices remotely. Use the Reyee auto-discovery feature or scan the QR code using the mobile application to easily add devices to new or existing projects via the cloud.

*Note: PoE injector not included.


Antenna Gain: 2.4GHz: 3dBi: 5GHz: 5dBi
Beam-width: 360°
Data Rate: 2.4GHz: 574Mbps; 5.8GHz: 1201Mbps
Ethernet Ports: 2x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 18W

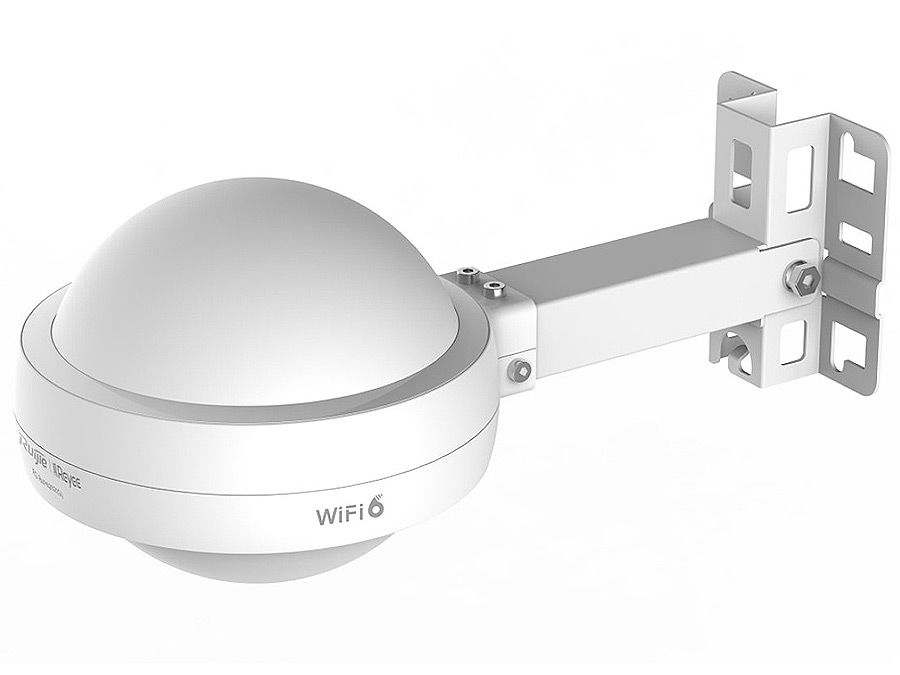

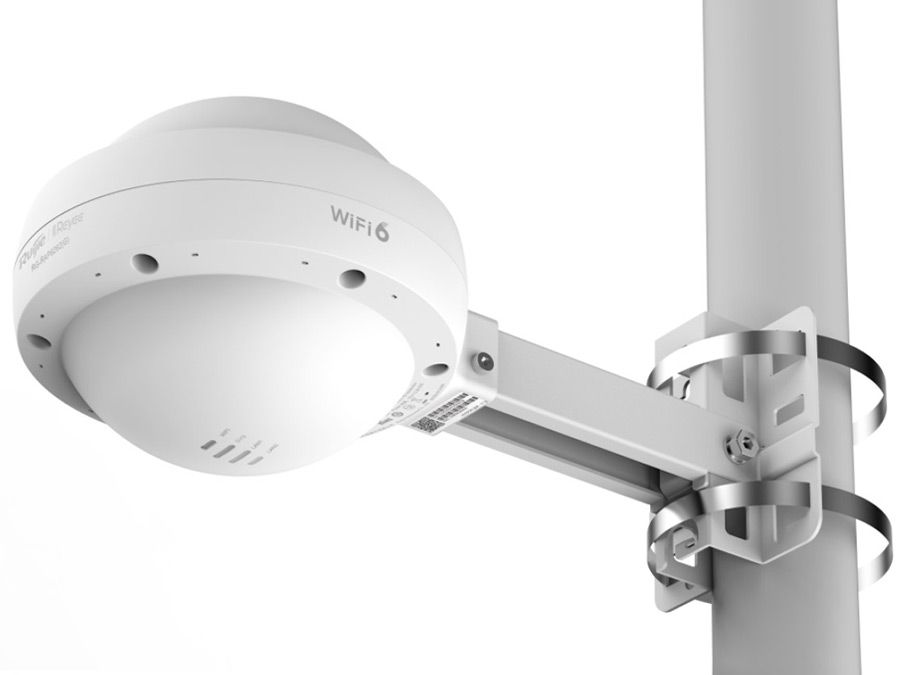

Mounting: Wall or Pole Mount
Operating System: Reyee
Operating Temperature: -30°C to 65°C
PoE Input: 802.3at
PoE Output: None
Power Input: 802.3at or 12V 1.5A Power Supply (Not Included)
Serial Interface: None
SFP Ports: None
SIM Slots: None
Supported Voltage Range: 802.3at PoE or 12V 1.5A DC
USB Ports: None

Datasheet Download
